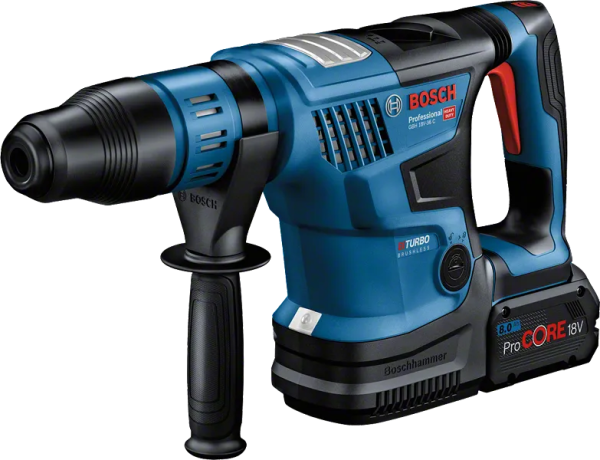

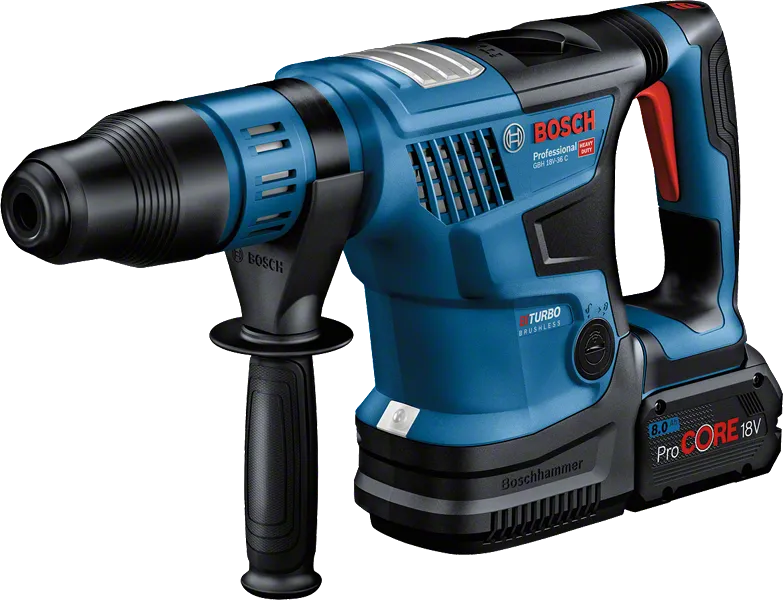

GBH 18V-36 C Professional – Technical Data

Additional Data

• Battery voltage: 18.0 V

• Impact energy: 7 J

• Tool holder: SDS max

• Max. impact rate at rated speed: 0 – 2,900 ipm

• Rated speed: 0 – 500 rpm

• Weight without battery: 5.3 kg

• Rated impact energy: 7 J

Drilling Range

• Drilling diameter in concrete with hammer drill bits: 14 – 35 mm

• Optional application range in concrete with hammer drill bits: 14 – 35 mm

Total Vibration Values

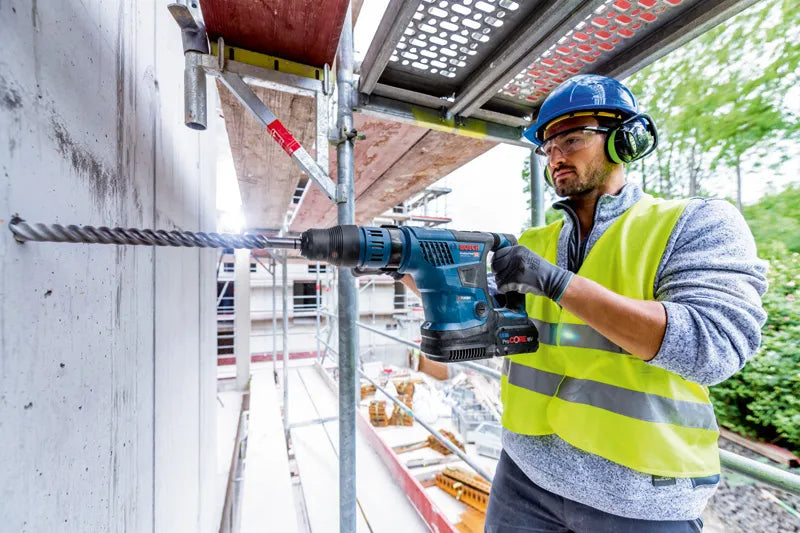

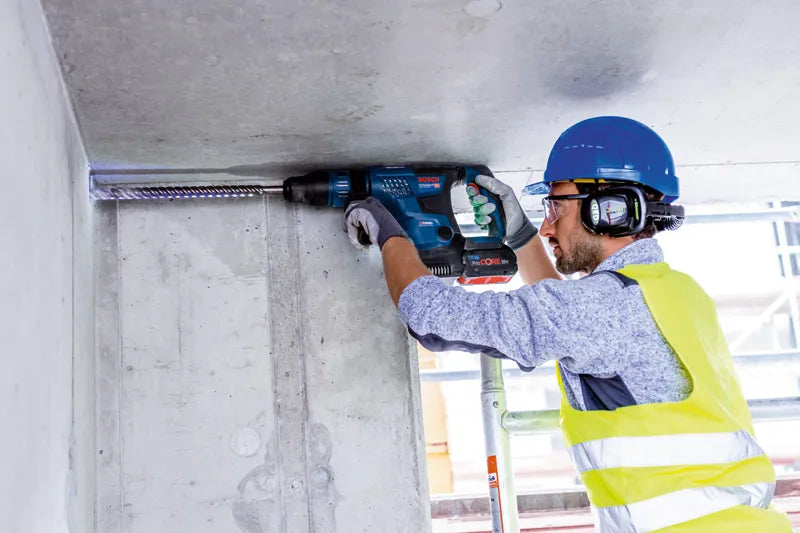

• Hammer drilling in concrete

  • Vibration emission value ah: 11.4 m/s²

  • Uncertainty K: 1.5 m/s²

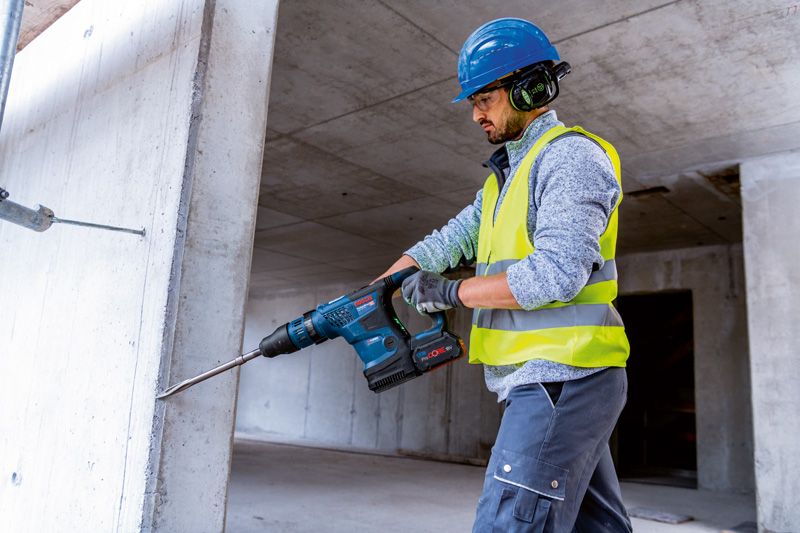

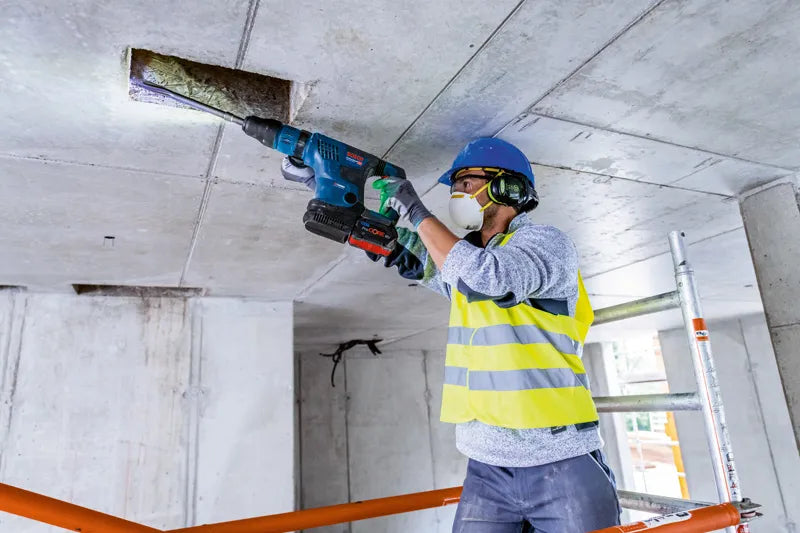

• Chiseling in concrete

  • Vibration emission value ah: 10.8 m/s²

  • Uncertainty K: 1.5 m/s²

GBH 18V-36 C Professional: Additional Information

Product Highlights

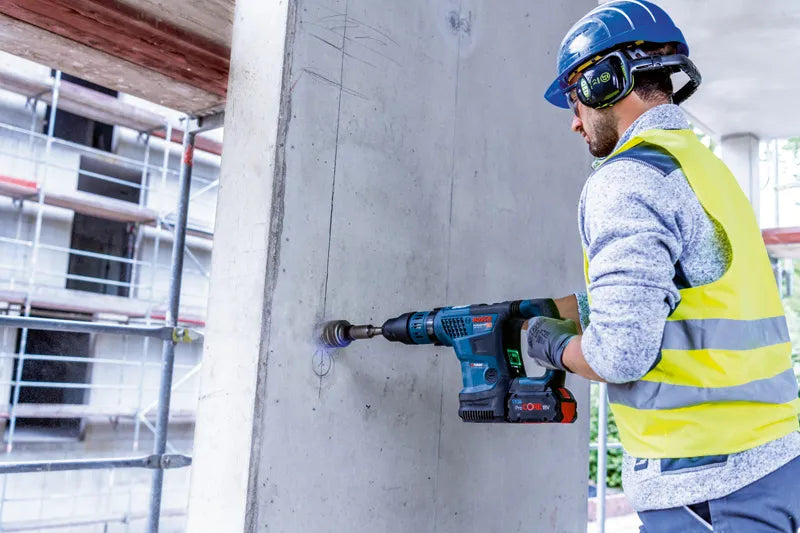

The GBH 18V-36 C Professional combines extreme compactness with high power for demanding concrete applications. Weighing just 6.1 kg, it is more compact and lighter than any other cordless SDS max hammer on the market.

Equipment and Application
Thanks to its BITURBO Brushless technology, this rotary hammer delivers an impressive maximum impact energy of 7.0 J. It is fully compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). For maximum performance, it is recommended to use ProCORE18V 8.0 Ah batteries. It is also part of the AMPShare multi-brand battery alliance for broader compatibility.

Additional Information
The tool features a modern user interface with Bluetooth connectivity for real-time tool status monitoring and access to various tool modes. It also offers advanced electronic functions such as soft start when drilling and chiseling and a lock-on button for chiseling, making it one of the most intelligent and versatile rotary hammers available.
